MADMAN & CO. RACING, INC.

MADMAN MANUFACTURED
Catalog Home

MM-ACD A/C Delete

MM-AR LT-1 Alternator Relocation Bracket

MM-BLK Brake Line Kits

MM-DT Dipstick Tubes

MM-ER Exhaust Rings

MM-F/AL Forward/Aft Limiter

MM-LCA Lower Control Arms

MM-LSHF LS-1 Header Flanges

MM-MID Midplate

MM-MP Motor Plates

MM-PB Panhard bar

MM-QRH Quick Release Hub Adapter

MM-SHRB Shock Relocation Bracket

MM-SPRK Spring Relocation Kit

MM-SYA "Save Your Ass" Bars

MM-TA Torque Arms

MM-TAHM-R Torque Arm Housing Mount

MM-TBSS Rear Suspension Kit

MM-TL Travel Limiters

MM-WB Wheel Bars

MM-WBB Wheelie Bar Brackets

Madman T-Shirt

Madman A/C Delete

Description: This a/c delete panel is made of .060 aluminum and is designed to cover the hole left in firewall after removal of a/c box.

 MM-ACD - Price: $75.50

Madman LT-1 Alternator Relocation Bracket

Description: Madman LT1 alternator relocation bracket kit moves the alternator down to the A/C compressor location while retaining use of the factory alternator. It also deletes the power steering. Includes mounting hardware and new belt.
Available for factory mount or Madman Motor Plates

MM-AR - Price:  $172.15

View Installed Picture 1
View Installed Picture 2

Madman Brake Line Kits

Description: These brake line kits come with the metric adaptor to attach to the factory brake lines on car to aftermarket brakes. Fits F-body.

MM-BLKF - Front kit

MM-BLKR - Rear kit

Price: $49.99

Madman Dipstick Tubes

Description: Madman's custom dipstick tubes are bent to fit 4th Generation F-bodies with TH350, TH400, Power Glide, or 4L80E transmissions. These have NHRA required locking cap and the appearance is identical to GM 4l60E dipsticks. Design allows for easy fill unlike braided steel hose-style dipsticks. Kit comes with dipstick tube, dipstick, and grommet for transmission. For ease of installation, we recommend that dipsticks be installed during transmission installation. Fits 1993-2002 Camaros and Firebirds and 2010-2015 Camaros.

MM-DT 4L80E
MM-DT PG
MM-DT TH350
MM-DT TH400

Price: $83.00

Madman Exhaust Rings

Description: Stainless exhaust outlet rings, set of 2

MM-ER4 - 4” i.d.
MM-ER5 - 5” i.d.

Price: $49.90

Madman Forward/Aft Limiter

Description:  Forward/Aft limiter kit includes3/4” x .058 x 12″ chromoly tube, mounting tabs, right and left rod ends, and threaded tube ends. Tabs weld to chassis, rod ends bolt to engine block. Highly recommended for any car using an aluminum front motor plate and engine mid-mount. Engine limiters proved a simple but positive means of eliminating any rearward or forward movement of the engine and transmission during acceleration or deceleration. These limiters eliminate the need for solid transmission mounts which can put excessive loads on the tailshaft housing. Welding required for installation.

 MM-F/AL - Price: $69.95

Madman Lower Control Arms

Description: Madman's offset lower control arms allow the use of larger tires when mini-tubbing your car by moving the double adjusting control arm inboard in the factory mount. Control arms are made out of 1 ¼ chromoly and are threaded with right and left hand aircraft grade chromoly rod ends. Kit comes with (2) control arms; (2) right and (2) left; ¾ x 5/8 rod ends and (8) spacers. Fits 1982-2002 Camaros and Firebirds.

MM-LCA - Price: $307.99

Madman LS-1 Header Flanges

Description: Our LS-1 header flanges are laser cut from 3/8 Stainless steel. Specify tube size when ordering.

MM-LSHF - Price: $116.59

Madman Midplate

Description: The midplate is designed to complement our front motor plates. It is made out of .100 steel allowing you to customize your install for all types of headers. The plate allows for a side mount or a top mount. The plate fits LS1, LT1, SBC, and BBC ’93-‘02 F-body. Highly recommended for extremely high horsepower drag cars.  Use of a urethane transmission mount is also recommended.

MM-MID - Price: $157.75

Madman Motor Plates

Description: Madman's motor plates provide additional strength to the front of the car and securely mount the engine, while allowing for clearance for big tube headers. Motor plates come pre-fitted to your 1993-2002 Camaro or Firebird and are cut to fit the frame rails and engine block. Requires two tabs welded on the frame. Kit comes with (2) ¼" 6061 aluminum plates and (2) weld on frame tabs. Fits 1993-2002 4th Gen. Camaros and Firebirds with LT1, LS1, SBC, or BBC engines.

Price:
MM-MP BBC - $232.08
MM-MP LS-1 - $232.08
MM-MP LS-1 Universal - $186.98
MM-MP LT-1 - $232.08
MM-MP SBC - $232.08

View Installed Picture

Madman Panhard Bar

Description: Madman’s double adjusting panhard bar is constructed of 1 ¼" chromoly tubing and threaded with aircraft grade chromoly rod ends (both left and right hand threads.) This bar allows the rear end to be centered in the car while adding strength and rigidity over the stock stamped steel piece. Kit comes with panhard bar; (1) right and (1) left, ¾ x 5/8 rod ends and (4) spacers. Fits ‘82-‘02 Camaros and Firebirds.

MM-PB - Price: $224.38

Madman Quick Release Hub Adapter

Description: GM splined quick release hub adapter

MM-QRH - Price: $105.95

Madman Shock Relocation Bracket

Description: Shock relocation bracket kit for ’82-’02 F-body

MM-SHRB - Price: $45.99

Madman Spring Relocation Kit

Description:  Spring relocator kit with springs

MM-SPRK - Price:  $249.99

Madman "Save Your Ass" Bars

Description: Save Your Ass" bars are made from 1" chromoly.  Designed to withstand hard launches and wheelie stands, these bars really do "Save Your Ass" by protecting your expensive headers and oil pan. This package contains two (2) hose clamps and two (2) bars. Fits ’93-’02 F-body.

MM-SYA - Price: $112.49

Madman Torque Arm

Description: Madman's torque arm is the most advanced and most adjustable torque arm on the market today. Our torque arms are constructed of chromoly tubing with aircraft grade chromoly rod ends. They also feature dual adjusters on rear bar to prevent binding on rear end housing, and multiple adjustment holes on the rear bracket. The front cross member comes with integral tubular driveshaft loop and five adjustment holes to provide the most bite at the track.
Can be used on the street, but only for the hard core! Comes with rear bracket, arm with slider, (3) 3/4 x 5/8 rod ends, front cross member, and hardware. Available for 12 bolt, 9”, and Racecraft rear ends.

Price:
MM-TA 12 bolt - $934.99
MM-TA 9” - $934.99
MM-TA RC - $934.99

View Installation Instructions

Madman Torque Arm Housing Mount

Description: Torque arm housing mount for Racecraft 9” rear end

MM-TAHM-R - Price: $219.99

Madman TBSS Rear Suspension Kit

Optional

Description:  Rear suspension kit for a 2003-2009 Trailblazer SS. Allows on-vehicle adjustments to set pinion angle, front to rear tire location, and side to side tire location.
Kit includes chromoly double adjustable upper and lower control arms and panhard bar.

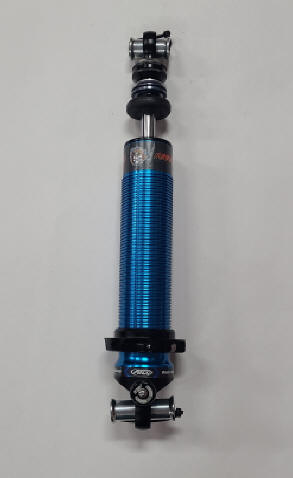

Package includes kit and a set of 200302 AFCO shocks custom designed for the TBSS kit.

MM-TBSS Kit - Price:  $875.99
MM-TBSS Package - Price:  $1,925.99

Madman Travel Limiters

Description: Madman's travel limiter kit is a must for all high-horsepower 4th generation Camaros and Firebirds. This kit comes with 2 weld-on tabs for the frame, an adjustable bar, and chain. Madman's kit comes complete with proper length chain and all bolts and tabs.  This kit allows total control over the front suspension, allowing you to dial in the right amount of lift produced by the front springs without wasting power on those sky-high wheel stands.

MM-TA - Price: $106.69

Madman Wheelie Bars

Description: Madman's wheelie bars are a vital part of the rear suspension and have a definite effect on chassis performance. The construction of the wheelie bars also attributes to their effectiveness during tuning. These pro-style wheelie bars are constructed of 4130 chromoly tubing and have a rear bracket designed to distribute the load forces both to the upper and lower sections of the bars. 48"- 66" Outlaw wheelie bars feature 1-1/4" lower frame with 1-1/4" uppers. 85" Pro-Outlaw wheelie bars feature 1-1/4" lower frame with 1-1/4" uppers. Madman's wheelie bars feature aircraft quality 5/8" x 1/2" rod ends for easy adjustment and added strength.

Partially welded version will require only minor welding to rear end housing. Unwelded bars come completely disassembled. Please give us a call at 225-343-9029 if you have any questions about which kit is correct for your car.

Price:
MM-WB 48-66P (partially welded) - Call for current price
MM-WB 48-66U (unwelded) - Call for current price
MM-WB 85U (unwelded) - Call for current price
MM-WB 85W (welded) - Call for current price

Madman Wheelie Bar Brackets – Image not currently available
Description: Wheelie bar bracket kit, ’93-’02 F-body

MM-WBB - Price: $55.00

Madman T-Shirt

Description:  This 100% cotton shirt has our colorful logo on the back and "Madman & Co. Racing" on the front left breast.  Currently available only in black. Available in S, M, L, XL, and 2X.

Price:

S, M, L, XL - $19.99

2X, 3X - $22.59
