CHASSIS COMPONENTS

SHOCKS

AFCO

Strange

AFCO Shocks

Single Adjustable

Description: AFCO Single Adjustable Shocks are an economical alternative to the fully double adjustable design. The single adjustment gives you the ability to adjust rebound damping control without affecting the compression damping characteristics of the shock. The rebound adjustment is the most critical in tuning a drag racing setup. This adjustment allows the tuner to dial in the separation of the chassis and keep the tires planted during the critical first 60’ down the track. Extension adjustable only – will not affect compression. Widest range of adjustment on the market. Make a click and feel the change. 100% dyno tested. Sold individually.

3855 Single Adj., 5” stroke
3875 Single Adj., 7” stroke
Price: $377.99

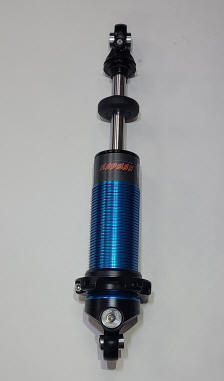

Double Adjustable

Description: AFCO ELIMINATOR Twin Tube Adjustable Shocks are built specifically for drag racing. Their onboard data acquisition systems help us know what your car is doing every 0.001 of a second. They’ve engineered the ELIMINATOR to control it at every point. This gives you, the racer, unsurpassed traction. AFCO double adjustable shocks are the ultimate tool in the chassis tuner’s arsenal. The double adjustments of both compression and rebound damping are completely independent. Changing the setting of one has no effect on the setting of the other. By allowing full control over both compression and rebound forces, this shock gives the tuner the ability to fine tune every aspect of chassis movement to provide the ultimate in acceleration control and overall drivability. Widest range of adjustment on the market. Make a click and feel the change. 100% dyno tested. Sold individually.

3850 Double Adj., 5” stroke
3860 Double Adj., 6” stroke
3870 Double Adj., 7” stroke
3870F/BNC Double Adj. w/big nose comp/standard rebound
3870R Double Adj., Mustang and F-body stock rear mount
3870-R1 Double Adj., G-body
3890 Double Adj., 9” stroke
Price: $469.99

200301 Double Adj., custom valved F-body rear
Price: $489.99

3860BG Double Adj., 6” stroke, BG valve
Price: $508.99

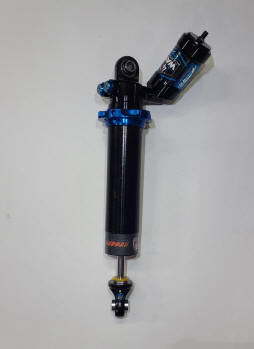

Monotube Canister

Description: The Big Gun X Series Double Adjustable Monotube shocks are specifically valved for extremely high horsepower drag radial tire equipped applications. With this valving package, chassis tuners can better control the hit to the tire using this series of shocks. Drag radial competitors require a unique valving package to control the rear suspension and properly apply the radial tire to the track. Don't drive thru your shocks with that big power! If you have 1,500+ horsepower and are on a drag radial tire, this is the valving package you need to complement your race program. Choose this series of shocks for the ultimate control off the line and superior traction down track. For quicker adjustments, mount your AFCO shocks upside-down for unsprung weight savings and easier access to the rebound adjuster. Double Adjustable - broad range of adjustment. Big Gun X Valving - specifically valved for extremely high horsepower applications: ODR, Outlaw 275, X275, 10.5, T/S, and T/D. Great for BIG or SMALL tire door slammers. Large piston provides superior launch and down track stability. Gas pressure eliminates cavitation and allows shock to recover faster. Sold individually.

3270BGX Monotube Canister, 7” stroke
Price: $755.99

SEE "Misc. Parts & Accessories" below for canister mounts and portable nitrogen kit assy.

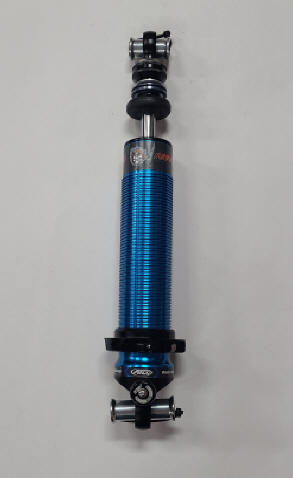

Custom Double Adjustable Rear for Madman TBSS Kit

Description:  Direct bolt-in double adjustable shocks for the rear of the 2003-2009 Trailblazer SS. Custom valved for radial or slick tires. Sold individually, or as part of MM-TBSS Package.

200302 Double adjustable rear for Trailblazer
Price:  $533.99

See Install Pic #1
See Install Pic #2

AFCO Hardware Kit

Description:  This coil-over kit is used to mount a 2 1/2" or 2 5/8" coil-over spring on any AFCO big body threaded aluminum shock. Includes flat spring seat, clip to secure seat to shaft end, and threaded adjuster nut for the spring seat on the body. Anodized Blue.

20135D Coilover hardware kit
Price:  $71.99

Strange Shocks

Single Adjustable

Description: Single adjustable rear shock.  Lightweight aluminum body, 10 extension settings provides a wide range of control, easily accessible external adjustment knob allows quick changes for varying conditions, custom valving available upon request, ability to be rebuilt or revalved.  Includes upper stud with rubber cushions, concave washers & lock nut, lower polyurethane bushing, and steel inner sleeve. Rotating knob stiffens valving. Fits '82-'02 Camaro and Firebird. Sold individually.
Soft Settings for drag racing allows weight transfer to increase traction
Medium Settings for performance street enhances handling & cornering characteristics
Stiff Settings for road racing provides very aggressive control over body roll

S5270 Single adjustable rear shock, '82-'02 F-body
Price:  $175.00

Description:  Single adjustable front shock.  Coil-over benefits - compact & lightweight, allows adjustments to ride height, and wide range of spring rates available. Rotating knobs clockwise stiffens valving. Fits '93-'02 Camaro and Firebird. Sold individually.
Extension Adjustment: Softer allows for more weight transfer, Stiffer enables quicker reaction times.  Sold individually.

S5271 Single adjustable front shock, '93-'02 F-body, drag race only
Price:  $175.00

Double Adjustable

Description: Double adjustable rear shock. Lightweight aluminum body, 10 extension & compression settings provide a wide range of control, easily accessible independent external adjustment knobs allow quick changes for varying conditions, custom valving available upon request, ability to be rebuilt or revalved. Includes upper stud with rubber cushions, concave washers & lock nut, lower polyurethane bushing, and steel inner sleeve. Rotating knobs clockwise stiffens valving.  Fits '82-'02 Camaro and Firebird.  Sold individually.

S5070 Double adjustable rear shock, '82-'02 F-body
Price:  $295.00

Description:  Double adjustable front shock.  Lightweight aluminum body, external adjustment knob provides 10 extension settings and allows quick adjustments for varying conditions, integral coil-over body permits simple changes to ride height, custom valving available upon request, ability to be rebuilt or revalved. Coil-over benefits - compact & lightweight, allows adjustments to ride height, range of spring rates available. Rotating knobs clockwise stiffens valving. Fits '93-'02 Camaro & Firebird.  Sold individually.
Extension Settings:  Softer allows form more weight transfer, Stiffer enables quicker reaction times.
Compression Settings: Softer improves reaction to bumps in the track,  Stiffer dampens impact forces from wheel stands.

S5071 Double adjustable front shock, '93-02 F-body, drag race only
Price:  $295.00

SPRINGS

AFCO

BMR

Strange

AFCO Springs

Description: Get the performance you are looking for with the tightest tolerances in the industry. All AFCOILS® are manufactured using ultra-high tensile wire. These springs are guaranteed not to lose more than 1% of free height. Engineered design resists spring lean and bow. Best warranty in the industry! Available in a variety of lengths and spring rates, choose all-black coating or polished chrome. Sold individually.

Price:
Polished Chrome - $83.99
Black Coating - $94.99

BMR Springs

Description:  BMR Suspension believes the right springs go beyond looks—your F-body needs to perform, too! All BMR springs are manufactured from chrome silicon high-tensile spring wire, and are cold wound on a CNC coiling machine. The CNC coiling head can adjust the spring diameter in real time to ensure that every spring is exactly the same. This guarantees that your right spring matches your left spring. Every BMR spring is compressed solid at the factory, not once, but twice. This gives the spring its permanent set, and guarantees no sag. BMR springs are stress-relieved at 750 degrees F, ensuring most stresses induced during the winding process are eliminated. All springs are then shot-peened to eliminate residual surface stresses. Every spring is computer tested as the last step. These springs will drop the front end of your GM F-body 1.25-inches, and feature a fine-tuned spring rate to give you great handling and a smooth ride. Fits '93-'02 Camaro and Firebird.  Sold as set of 4, red powdercoat.

SP-001 Lowering springs, set of 4, 1.25" drop
Price:  $309.95

Strange Springs

Description:  SAE 9254 chrome silicon, cold wound, optimized wire diameter, stress relieved, shot peened, magnafluxed, deep blue powder coat.  For front struts and rear shocks.  Choose spring rate, examples below.  Sold a set of 2.

SP14275 14" 275 lb. Springs
SP14300 14" 300 lb. Springs
SP14325 14" 325 lb. Springs
Price:  $156.00

STEERING

BMR Steering Conversion Kits

Description:  Adding a manual steering rack and reducing weight and parasitic loss on your Fourth Gen GM F-body is easy with a manual steering conversion kit from BMR Suspension. This kit consists of a custom Pinto-style manual steering rack, steering shaft with universals, billet mount, and bump steer kit, and is designed to fit 1993-2002 GM F-Bodies with BMR manual rack K-members. BMR’s manual steering rack conversion kit (RK001) is designed for enthusiasts looking to save weight and reduce parasitic power loss by eliminating the factory power steering. BMR designed the RK001 manual steering conversion kit for street performance and drag race applications. The Fourth Gen F-body a-arms pivot from a width that is 2-inches wider than the inner tie rod pivot points of a Pinto-style rack and pinion. To compensate for this, BMR provides a custom width rack just for this application. The rack extension has been biased to the passenger side of the vehicle relocating the steering shaft an inch to the driver’s side, allowing for improved header clearance.
***NOTE, this kit only works with BMR-1 K-members designed for manual steering. This kit will require drilling of your spindle. It is suggested that a "skinnie" wheel be used to get full adjustment from the bumpsteer kit.***

RK-001 Manual steering conversion kit, use with BMR K-member only
Price:  $939.95

Description:  Adding a manual steering rack and reducing weight and parasitic loss on your Fourth Gen GM F-body is easy with a manual steering conversion kit from BMR Suspension. This kit consists of a custom Pinto-style manual steering rack, rack mount, steering shaft with universals, billet mount, and bump steer kit, and is designed to fit 1993-2002 GM F-Bodies with stock K-members. BMR’s manual steering rack conversion kit (RK002) is designed for enthusiasts looking to save weight and reduce parasitic power loss by eliminating the factory power steering. BMR designed the RK002 manual steering conversion kit for street performance and drag race applications. The Fourth Gen F-body a-arms pivot from a width that is 2-inches wider than the inner tie rod pivot points of a Pinto-style rack and pinion. To compensate for this, BMR provides a custom width rack just for this application. The rack extension has been biased to the passenger side of the vehicle relocating the steering shaft an inch to the driver’s side, allowing for improved header clearance.
***NOTE, this kit only works with stock K-members. This kit will require drilling of your spindle. It is suggested that a "skinnie" wheel be used to get full adjustment from the bumpsteer kit.***
Fits '93-'02 Camaro and Firebird.

RK-002 Manual steering conversion kit, use with stock K-members only
Price:  $939.95

Racecraft Pinto Rack Clamp

Description:  Billet pinto rack clamp CNC machined from 6061 T-6 aluminum and anodized black.

333109 Billet pinto rack clamp
Price:  $49.50

Bickel Steering Column Kit

Description:  The steering column should be lightweight yet not compromise strength. Constructed of 4130 chromoly tubing, consisting of 1-1/4" column with 3/4" shaft, delrin column bushings, aircraft quality u-joint, splined rack adapter and your choice of Mark Williams, Strange or Wilwood removable hub. You won't find a better column kit on the market. This kit is complete with column to chassis supports, hub type - M/W 5-bolt SFI, dual U-joints

JBRC1021C Steering column kit
Price:  $369.00

Racecraft Steering Columns

Description:  Steering column bolts directly to the factory location, there are no dash modifications required. The firewall end of the column locates the universal joint basically in the factory location and can be trimmed to move the joint even closer. The steering wheel end of the tube is designed extra long to be trimmed to desire length for quick release, steering wheel, or seat location. Column can be spaced down at the rear mount to move steering wheel down as well. Fits '82-'02 Camaro.

333115 '82-'02 Camaro bolt-on steering column
Price:  $197.00

Description:  Steering column bolts directly to the factory location, there are no dash modifications required. The firewall end of the column locates the universal joint basically in the factory location and can be trimmed to move the joint even closer. The steering wheel end of the tube is designed extra long to be trimmed to desire length for quick release, steering wheel, or seat location. Column can be spaced down at the rear mount to move steering wheel down as well. This kit includes everything you need to connect to your pinto rack. Fits '82-'02 Camaro.

333115-C 1982-2002 Camaro Bolt In Tubular Steering Column Complete Kit
Price:  $437.00

Flaming River U-Joint

Description:  These universal joints are similar to military specification joints for aircraft and have become the select choice of drag racers due to their lightweight design. A lubricant filled silicone boot provides maintenance-free operation for extended universal joint life. This boot is designed for high temperature environments with a continuous rating of 650°F. Please note, nominal size is outside diameter. This is a lightweight application that is not designed for circle track, street, or highway use and is not recommended for steering.

FR1800B14 7/8" Mil-spec u-joint
Price:  $147.00

Flaming River Rack Adapter

Description:  The preferred choice of drag racers for the sleek and lightweight designed steering systems. These pin and block universal joints are available in 1.250" outside diameter and 1.000" outside diameter designs. Racing design only - NOT recommended for street use. Frequent lubrication is required.

FR1821 3/4" x 9/16"-26 U-joint
Price:  $116.00

Grant Steering Wheels

Description:  Designed for race cars, Performance GT wheels feature two holes to ease the installation of aftermarket switch buttons for racing. These wheels have a hand-stitched black vinyl grip and anodized aluminum spokes. Performance Series, aluminum/silver, vinyl/black, 13 in. diameter, 5-bolt mount.

GRA 633 Steering wheel
Price:  $114.00

Description:  Grant classic competition steering wheels have a distinctive yellow band "top marker," a quick reference point that allows a competitive racer to know that the steering wheel is in a straight position, without having to take his eyes off the track. These Pro Stock model steering wheels feature a 3-spoke aluminum racing design, circled with rich vinyl handgrips. Aluminum/black, vinyl, 13 in. diameter, 5-bolt mount

GRA 1075 Steering wheel, Pro Stock
Price:  $112.00

Bickel Steering Wheel Button Bracket

Description:  Bolts to right or left side of steering wheel spoke. Provisions for one or two buttons. Black anodized.

JB1194 Steering wheel button bracket
Price:  $29.95

Bickel Steering Wheel Hub Extension

Description:  5 Bolt billet steering wheel hub extension. Can be used to extend wheel location or create more room when hub and wheel are removed. Choose 3" or 5" Long. NHRA and IHRA Approved. Hub is black anodized.

JBRC1030 Billet steering wheel hub extension, 3" - Price:  $105.00
JBRC1030A Billet steering wheel hub extension, 5" - Price:   $125.00

Strange Quick Release Hub

See Madman Quick Release

Description:  Provides quick removal of steering wheel, integral flange eliminates loose components, spring loaded with positive locking system, coarse spline simplifies engagement, one wide tooth ensures proper steering wheel alignment
Hub:  2024-T351 billet aluminum, 3.500″ OD, 5 on 2.834″ bolt circle .192″ holes, .750″ lightening holes, broach 10 spline with one tooth removed, black hard anodized finish

Release Collar:  6061-T6511 billet aluminum, 2.480″ OD, black hard anodized finish,

Weld End:  4130 chromoly, 9 spline with one wide tooth, .650″ OD tube end, .312″ bore lightening hole, black oxide finish

Q1200 Quick release hub designed for Grant steering wheels
Price:  135.00

STRUTS

AFCO Struts

Double Adjustable

Description: This double adjustable strut utilizes superior valving technology which eliminates huge wheelies and the click by click adjustment allows you to know exactly where your valving is set. These drag racing struts offer more damping control and adjustment range than any other strut currently available. Double adjustable design - dial in your chassis. Valving allows the best front-end control on the market. Click by click adjustment. Fully independent compression and rebound adjustments. 35mm piston diameter; up to 37% larger than competition. Exclusive bolt-on spacer system for easy installation on all SN-95 or Fox Body spindles (part #30030 only). Indexing compression adjuster for increased clearance options at the base of the strut. Custom valving available; widest possible range in the industry. BNC or BIG GUN valving to smooth out wheelies. CAD designed and FEA optimized. Rebuildable and revalvable as needed. Locking coil-over kit included. Sold individually.

30030 Double Adj. Strut, ’79-’04 Mustang/’82-’92 Camaro
30032 Double Adj. Strut, ’10-’15 Camaro
Price: $997.99

Strange Struts

Single Adjustable

Description:  10 extension settings, provides a wide range of control, easily accessible external adjustment knob, allows quick changes for varying conditions, rotating knob stiffens valving
Soft Settings for drag racing allows weight transfer to increase traction
Medium Settings for performance street enhances handling & cornering characteristics
Stiff Settings for road racing provides very aggressive control over body roll
Fits '87-'93 Mustang, sold individually

S6001EM Single adjustable front strut, '87-'93 Mustang, fits V8 spindles only
Price:  $149.00

Double Adjustable

Description:  Independent external adjusters, 3 1/8 turns of extension adjustment, 13 compression settings, provides a wide range of control, allows quick adjustments for varying conditions, integral coil-over body, permits easy changes in ride height, custom valving available upon request, ability to be rebuilt or revalved, sold individually

S2041 Double adjustable coil-over strut, '87-'04 Mustang with V8 spindles, drag race only
S2061 Double adjustable coil-over strut, '82-'92 Camaro, drag race only
Price:  $529.00

MISC. PARTS AND ACCESSORIES

AFCO Rod Ends

Description: Steel rod ends available in a variety of sizes, LH and RH

10438 5/8 x 3/4 Rod end, RH
10439 5/8 x 3/4 Rod end, LH
Price $43.99

10444 1/2” Rod end, RH
10445 1/2” Rod end, LH
Price $70.99

10460 3/8” Rod end, RH
10461 3/8” Rod end, LH
Price: $15.99

Joe's Racing Canister Mounts

Tube mount

Panel mount

Description:  No more tie straps, baling wire, or bubble gum needed to hold your shock canisters or remote filters! Joe's canister mount features a quick release nylon strap that can secure any round canister from 1½” to 3″ in diameter. Select from 1 1/4”, 1 3/8”, 1 1/2”, 1 3/4” or 2″ tube clamps or a panel mount. Custom machined 1 5/8" tube mount available.  Sold individually.

Price:
Tube mount, 1 1/4" thru 1 3/4" - $74.95
Tube mount, 2" - $79.95
Custom tube mount, 1 5/8" - $109.95
Panel mount - $69.95

Joe's Racing Portable Nitrogen Kit Assy.

Descripton:  Joe's high pressure portable nitrogen tanks allow you to to fill shock canisters without having to worry about refilling the tank. It holds 1800 PSI and you can refill it yourself from larger tanks (that are filled with less than 1800 PSI of pressure) with the included transfer hose. The regulator can be adjusted from 0 to 200 PSI and is equipped with a hose & safety coupler that allows you to attach an air chuck or air tools for quick repairs.

Price:  $579.95

Joe's Racing Shock Pressure Test Kit/Inflation Tool

Description:  Joe's shock inflator system allows you to adjust gas pressure in your shocks up to 200 PSI. A bleed valve quickly drops pressure so you can meter the pressure to match your desired results. Swivel fittings make it easy to connect the long hose while the shocks are on or off the car. Digital accuracy provides .1 resolution that cheap versions are unable to match.

Price:  $184.95

RaceCraft Shock Sensor Nuts

Description:  This kit comes with everything necessary to mount Racepak travel sensors directly in line with your rear shocks. Our universal ½-20 nut features 1” of internal thread allowing the customer to use whatever length bolt needed to pass through their shock brackets.Sold as set of 4

212109 Shock sensor stainless nut kit
Price:  $75.00

Bickel Shock Mount Kits

Description:  Designed to fit popular coil-over shocks, this kit provides an adjustable lower mounting point. Fits 3" OD axle housing tube and allows 6" of height adjustment in 1" increments. 1/4" housing brackets, 3/16" shock brackets, and all mounting hardware included.

JBRC1111 Adjustable lower shock mount
Price:  $89.00

Description:  The upper shock eyelets attach to a weld-in horizontally mounted crossmember with four 1/8" 4130 mounting tabs. Crossmember tubing is 1-5/8"x.083 4130 chromoly. Kit comes complete with bolts, self-locking nuts, and misalignment bushings.

JBRC1112 Upper coil-over shock mount kit
Price:  $49.00

RaceCraft Upper A-Arm/Shock Mounts

Description:  1993-2002 Camaro upper a-arm mounts are designed to be used in conjunction with adjustable a-arms and the Strange 19" coil-over shock. The a-arm mounting holes have been moved in 1/2".  Sold in pairs.

429310  '93-'02 Camaro upper a-arm/shock mounts
Price:  $299.00

Bickel Strut Mount Kits

Description:  Unique design features strongest yet lightest possible way to mount upper strut stud to your chassis. Comes with strut caps and front and rear gussets.

JBRC1046 Upper strut mounts
Price:  $60.00

Description:  Adjust your strut travel from .750" to 1.43" (recommended). Shims can be installed and removed in the pits. Shim changes adjust strut travel .170" with each shim and allow a total of .680" in adjustment.

JBRC1055 Adjustable strut upper mount
Price:  $259.00

Description:  Manufactured from 4130 chromoly. Unique design eliminates mounting tab failure. Features 360 degree contact area for welding, set of 4 includes NS hardware. Pre-notched shown - add $70.00.

JBRC1060 Billet strut lower control arm chassis mount
Price:  $229.00

Bickel Tow Hook Kit

Description:  This JBRC kit comes with machined roof post attaching tube to be installed in roll cage. A chrome plated tow hook and quick release pin complete this handy, functional kit.

JBRC2017HD 1/2" Tow hook kit
Price:  $79.00

AFCO Spanner Wrench

20110 Adjustable spanner wrench
Price: $58.99

Joe's Racing Spanner Wrench

Description:  Tired of busting your knuckles adjusting coil over nuts? Get a Joe's coil-over spanner wrench. Made from 6061-T6 aluminum with radiused edges, anodized finish and a replaceable 6mm diameter 4130 steel pin (33520). Use the short handle for tight areas and the long handled version for more leverage. Fits shock nuts from 3″ to 3½” diameter.

Price:
33500 Spanner wrench, short - $39.95
33000 Spanner wrench, long  $49.95

Joe's Racing Spanner Wrench Replacement Pin

Description:  Replacement 6mm 4130 steel pin for Joe's coil-over spanner wrench.

33520 Replacement pin
Price:  $8.95

Strange Spanner Wrench

Description:  Simplifies adjustment of ride height, secures jam nut once proper ride height is achieved, prevents damage from use of improper tools

S1413 Spanner wrench
Price:  $16.00

AFCO Bearing Kit

20144 Coil-over thrust bearing kit, 1 pair
Price: $85.99

Strange Bearing Kit

Description:  Spring seat bearing kit for 2 1/2″ ID springs

S1409 Spring seat bearing kit for Strange aluminum struts and coil-over socks
Price:  $40.00

RaceCraft Coil-Over Kit

Description:  100% CNC parts on this kit. Tube sleeves are clear anodized and the nuts and spring tops are black anodize. Our kit has a thrust washer between the spring and the upper mounting point to ease spring friction when turning & has adaptor spacers to specifically work with RaceCraft caster/camber plates. The sleeves in this kit have a lower install height on the thread to ease the installation of the spring. Fits most aftermarket struts. Fits '82-'92 Camaro.  Springs not ncluded.

344110 '82-'92 Camaro coil-over kit
Price:  $195.00

Strange Front Coil-over Kit

Description:  Threaded aluminum coil-over sleeve, top spring seat, encapsulated thrust bearing & races, spring seat jam nut, strut shaft lock nut.  Fits 1987-1993 Mustang with V8 spindles and
1994-2004 Mustang all spindles. Sold individually, two kits needed per vehicle. Springs not included.

S6001 Mustang front strut coil-over kit, '87-93 Mustang with V8 spindles, '94-'04 Mustang all spindles
Price:  $89.00

RaceCraft Limiter Kit

See Madman Travel Limiters

Description:  Easy adjustability at the top, 4130 chromoly construction, nickel plated, easy bolt-in installation, compact design, infinite adjustability - 1 Rotation = 1/16". Mount to mount fully extended with 1-1/2" extension travel left is 22", mount to mount full short with 2" of compression left is 18", max travel is 5".

200202 '79-'02 Mustange Elite X bolt-on limiter kit
Price:  $649.00
