BRAKES
Catalog Home
Brake Kits
Master Cylinders and Components
Brake Kits

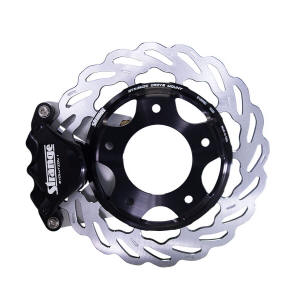

Strange Brakes
Description:
Strange brake kits feature the following:
Forged One or Two Piece Slotted Steel Rotors: Superior strength without the concerns of bolts loosening or hats cracking, slots improve air flow, assist in warpage prevention, and reduce weight,
Four Piston Aluminum Directional Calipers with Stainless Steel Pistons: Aluminum bodies drastically reduce weight, pistons are 1.625″ & 1.750″ to vary pressure on the pads decreasing pad taper, stainless steel pistons are corrosion resistant, anti-rattle clips reduce brake pad vibration and noise.
Billet Aluminum Caliper Mounts: One piece design eliminates spacers & bolts that require periodic maintenance,
Housing End Stud Kit: Additional components that are not supplied in most aftermarket systems.
Soft Metallic Brake Pads: Provide the best starting-line cold holding power, recommended for vehicles going 150 MPH or less in the 1/4 mile.B1706WC Pro Series rear brake kit for Late Big Ford / Torino ends with 2.500" brake offset - Price: $775.00
B1708WC Pro Series rear brake kit for Big Ford / Early Big Ford ends with 2.332" brake offset - Price: $775.00
B1708WCD2 Pro Series II dual rear brake kit for Big Ford / Early Big Ford housing ends, 2 pc. slotted rotors. - Price: $1,374.00
B1718WC Pro Series rear brake kit for H1143 ends with 2.832" brake offset - Price: $775.00
BB1718WC2 Pro Series II rear brake kit for H1143 ends with 2.832" brake offset, 2 pc. slotted rotors - Price: 875.00
B4110WC Pro Series front brake kit, GM applications using drum brake spindles, fits '67-'69 Camaro - Price: $975.00
B4118WC Pro Series front brake kit, GM applications using 4 3/4" bolt circle wheels, fits '82-'92 F-body - Price: $975.00
B4122WC Pro Series front brake kit, GM applications using 4 3/4" bolt circle wheels, fits '82-'03 S-10 - Price: $975.00
B4154WC Pro Series front brake kit for 1987-present Strange aluminum struts, 4 3/4" bolt circle - Price: $925.00
BB4178WC Pro Series front brake kit for '97-'13 Corvette reusing OEM front hubs - Price: $975.00
B4180WC Pro Series front brake kit, GM applications using 4 3/4" bolt circle wheel, fits '93-'01 F-body - Price: $1,195.00
B4180WC2 Pro Series II front brake kit, GM applications using 4 3/4" bolt circle wheels, 2 pc. slotted rotors, fits '93-'02 F-body - Price $1,295.00
B4597WC Pro Series spindle mount brake kit for Strange aluminum struts with forged or billet wheel/Racecraft F-body spindles - Price $575.00
B5010 Brake pad for Strange 4 piston caliper
Price: $25.00 each
Master Cylinder and Components
RaceCraft Master Cylinder Kit
Description: The '82-'02 Camaro master cylinder kit is the lightest kit available. The kit includes a Strange Engineering master cylinder Strange Engineering master cylinder # 300221, Racecraft Inc. adapter plate, and all grade 8 hardware to bolt this kit into your Camaro or Firebird. This master cylinder is to be utilized with 4-piston and spindle mount drag brake packages ONLY. This kit is not designed for factory brake and may be necessary to install a residual valve or smaller bore master cylinders depending on your application. This kit requires that a 3/8" hole be drilled through the factory brake pedal arm.
330208-K '82-;02 Camaro manual master cylinder kit
Price: $189.00
Strange Master Cylinder Kit
Description:
Assembly Includes:
Aluminum Master Cylinder With Plastic Reservoir: 1.125″ or 1.032" bore size, cast aluminum body anodized for corrosion resistance, flange for firewall mounting – 21/64″ holes on 3.187″ centers, provisions for side mounting – .390″ holes on 5 1/2″ centers, 1/2″-20 brake line holes with brass inverted flare seats.
Additional Components: 3/8″-24 x 4.200″ long push-rod, push-rod locking grommet, dust boot to protect piston bore, 1/2″-20 brass inverted flare adapters for 3/6″ brake line, 3/16″ brake line nuts.B3359TA Dual master cylinder, 1.125" bore
B3360TA Dual master cylinder, 1.032" bore
Price: $89.00
Strange Fitting
Description: For Strange B3359 / B3359TA / B3360 / B3360TA master cylinders, OEM Mopar K car master cylinder, and aftermarket replacements. Allows use of 3 AN brake lines common to drag racing. 1/2" - 20 inverted flare to 3 AN.
P2356 Master cylinder adapter fitting
Price: $10.00
